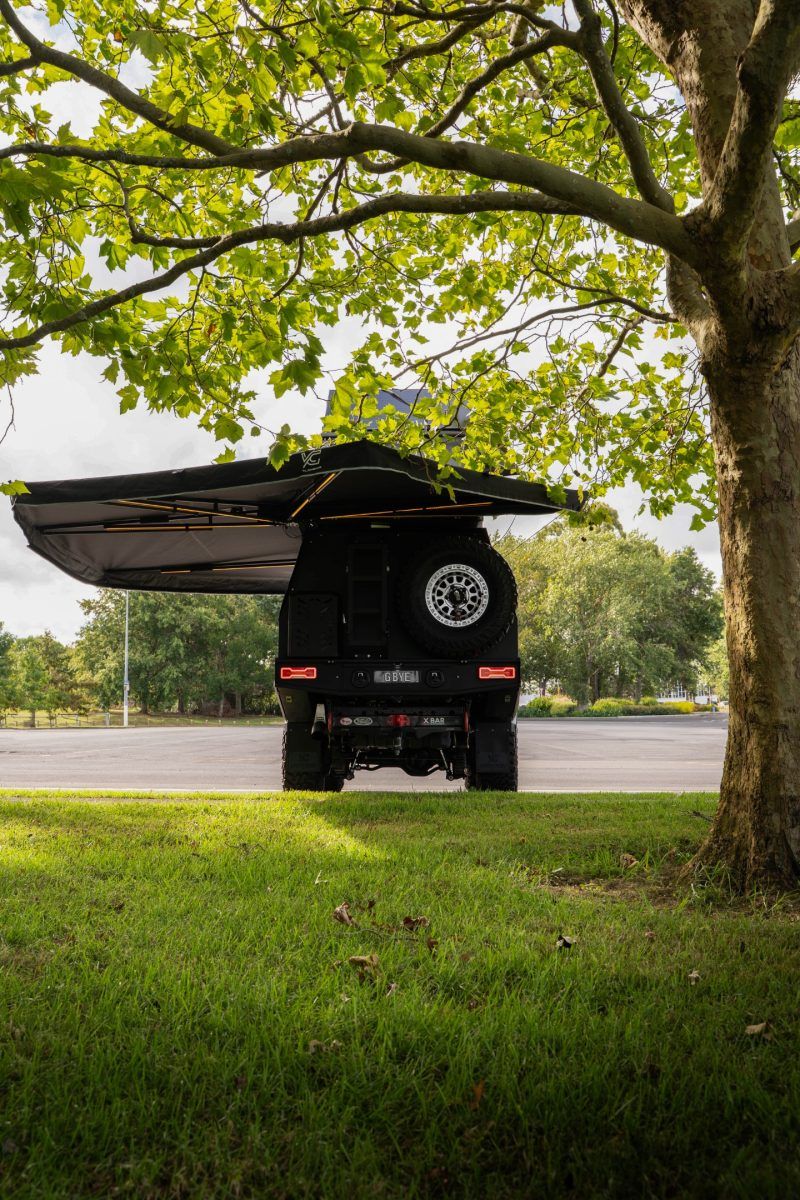

YC 270XL Awning
YC 270XL Awning
The YC 270XL Awning is engineered for touring vehicles that demand reliable coverage, structural integrity, and long-term durability. Designed to perform in harsh outdoor conditions, it combines reinforced construction with practical functionality to support serious overland setups.
Construction & Materials
The awning is manufactured from 320GSM hexagon ripstop poly-cotton canvas, offering increased tear resistance and long-term durability. A blackout-coated underside helps reduce heat transfer and light penetration, improving comfort in high-sun environments.
The unit is protected by a heavy-duty 1000GSM PVC storage bag for transport and long-term weather protection.
UPF Rating: 50++
Structural Design
At the core of the system is a patented rear swing-arm hinge design secured with nine bolts, engineered for strength and reliability under load. The structure is supported by six heavy-duty double A-frame aluminium arms, increasing rigidity and stability across the full 270-degree span.
Each awning panel includes integrated tie-down points to improve wind resistance. Three optional drop-down telescopic support poles can be deployed when additional support is required in adverse conditions.
Integrated Lighting
The YC 270XL features integrated LED lighting on each arm, providing even illumination across the coverage area.
• Six LED strips (one per arm)
• Dimmable brightness
• Multi-colour modes: amber, orange, and white
• USB powered
Coverage & Dimensions
Maximum coverage: up to 13.8 square metres
Closed dimensions:
2380mm (L) × 180mm (W) × 250mm (H)
Weight: 32kg
Please refer to the dimension diagram for full open-span measurements.
Included as Standard
The YC 270XL Awning is supplied complete with:
• Two height-adjustable mounting brackets
• Mounting hardware
• Two ratchet ropes
• Tie-down ropes and pegs
• Storage organiser pouch
The mounting system is designed to suit roof racks, roof bars, and canopy systems.
